Hardware diagram

  1. Front camera
  2. Earpiece/loudspeaker
  3. Sign-of-life LED (lights up when charging if battery is too low to power the screen).
  4. Flash
  5. Volume up button
  6. Volume down button
  7. Power button
  8. IR sensors for recognising hand gestures
  9. Microphone
  10. Fingerprint sensor

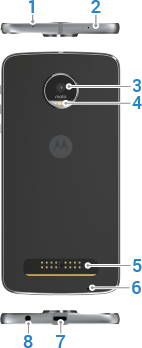

  1. Tray for SIM and SD card
  2. Microphone
  3. Back camera
  4. LED flash
  5. Connector for Moto Mods
  6. Microphone
  7. USB-C port for charging, transferring files, sharing connection with tethered devices.
  8. Headset jack
