About your hardware

Hardware diagram

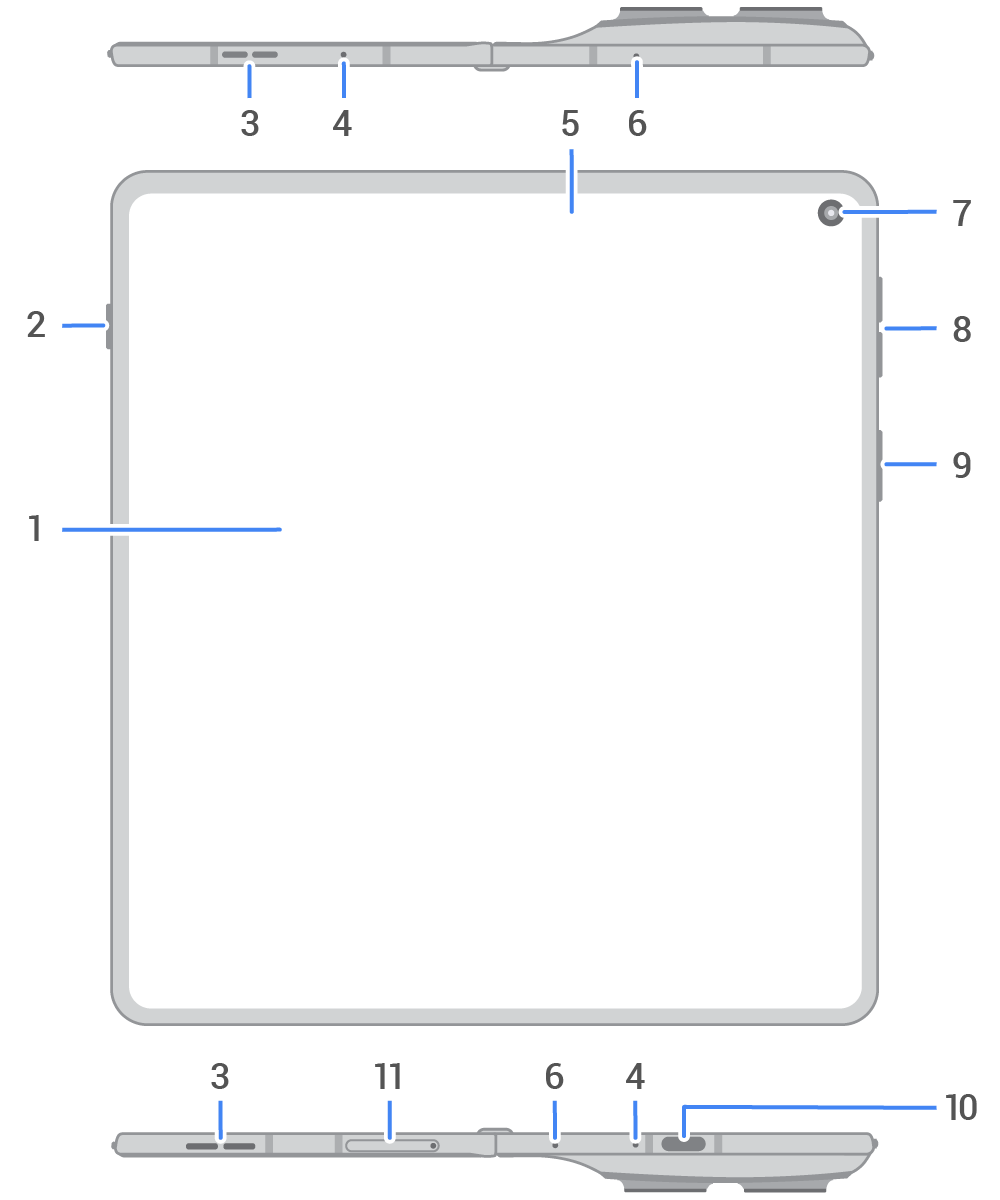

front view of unfolded phone with main features called out
  1. Main display
  2. AI Key (customize key)
  3. Speaker
  4. Air vent
  5. Light sensor (under display)
  6. Microphone
  7. Front camera (learn more in Camera help)
  8. Volume up/down buttons
  9. Power button and fingerprint sensor
  10. USB-C port to charge phone, transfer files, share data connection with tethered devices, and use wired headphones
  11. Tray for physical SIM card
front view of folded phone with main features called out
  1. Proximity and light sensor
  2. Earpiece
  3. Front camera (learn more in Camera help)
  4. External display

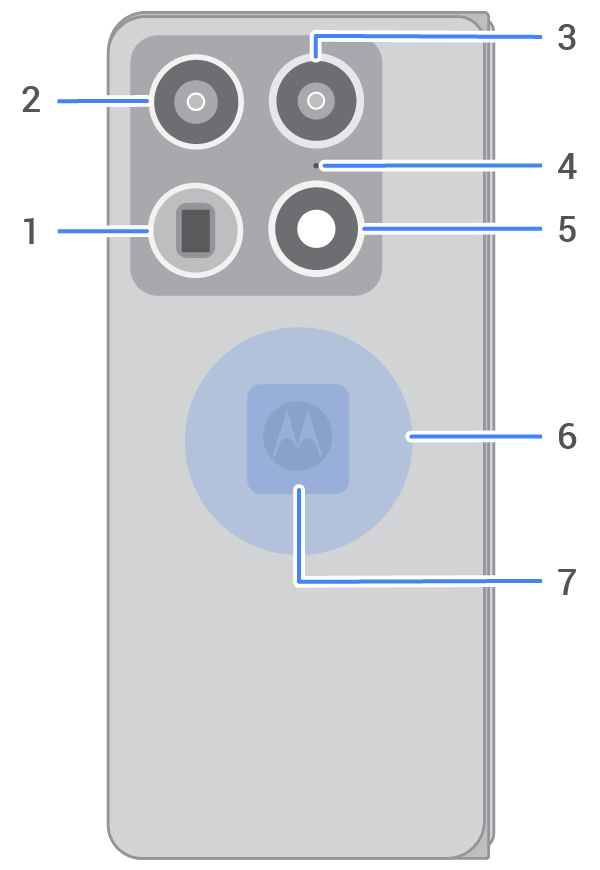

back view of folded phone with main features called out
  1. Periscope telephoto camera
  2. Ultrawide, macro camera
  3. Main camera
  4. Microphone
  5. Flash & light sensor
  6. Wireless charging area
  7. NFC sensor area for scanning tags or paying with your phone

Important: This product contains magnets. Always keep products with magnets more than 20 cm. (8 in.) from medical devices, such as pacemakers, internal cardio defibrillators, or other devices that can be affected by a magnetic field. Also, keep away from credit cards, ID cards and other media that use magnetically encoded information.

Protect your phone

Find cases and other accessories designed for your phone at motorola.com

Care for your phone

To clean the screen:

  • While this does not disinfect your phone, the best way to keep your phone clean is to wipe it thoroughly with a dry soft cloth. Avoid abrasive cloths, including paper towels and other materials with rough surfaces.
  • If the screen gets drops of liquid on it, wipe it with a clean, dry cloth.

To disinfect your phone:

  • It is okay to use wipes or cloths moistened with 70% isopropyl alcohol or Clorox® Disinfecting Wipes to gently wipe your screen.
  • When disinfecting or cleaning your phone, turn it off and avoid getting any moisture in its openings, including the charging port, headphone jack, microphones and speakers.
  • Don't submerge your phone in any cleaning agents, avoid using any cleaners with bleach or abrasives, and avoid spraying cleaners directly on the screen.

Dust and water resistance

Water and dust resistance were tested to IP46, IP48 and IP49 standards under controlled laboratory conditions. Withstands immersion in up to 1.5 meters of fresh water for up to 30 minutes, and is protected against powerful water jets (e.g., heavy rain, hoses) from any direction, as well as high-pressure, high-temperature water jets for up to 30 seconds. Exposure to conditions beyond these ratings are not covered by warranty. Resistance will decrease as a result of normal wear. Not designed to work while submerged underwater. Do not expose to liquids other than fresh water. Do not attempt to charge a wet phone. Designed to provide protection against the ingress of solid foreign objects of a size larger than 1mm. Not waterproof or dust proof.

While this device has been designed to provide some dust resistance, exposure to dust should be avoided as dust will reduce the hinge life and could damage the display.

To prevent water damage to your phone:

  • Do not expose your phone to pressurized water, salt water or liquids other than fresh water
  • Avoid prolonged exposure to water, and do not intentionally submerge in water
  • Dry your phone and ports thoroughly with a soft, clean cloth
  • Don’t try to charge your phone when it’s wet
  • Don't drop, puncture, or scratch your phone, as this could damage the water repellent features
  • Not advised for beach or pool use
